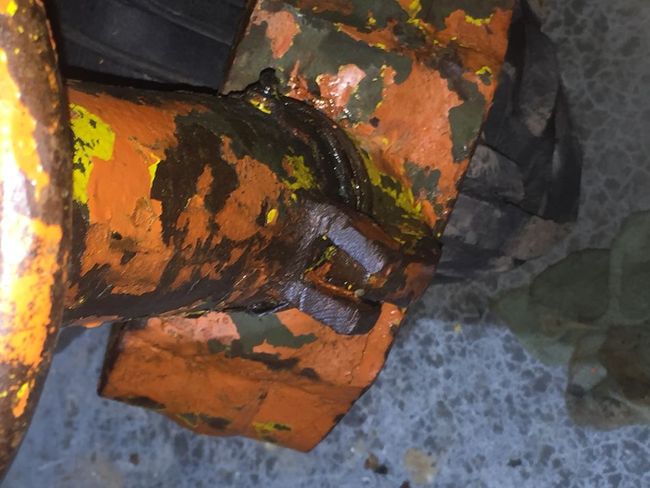

Landing leg detail

There are two lugs on the upright tube that the one lug on the caster can slide into to lock the wheel from moving around.
