The Glorifier Restoration
»
969 re-build rear tandem assembly
Slide Show
View Larger Image

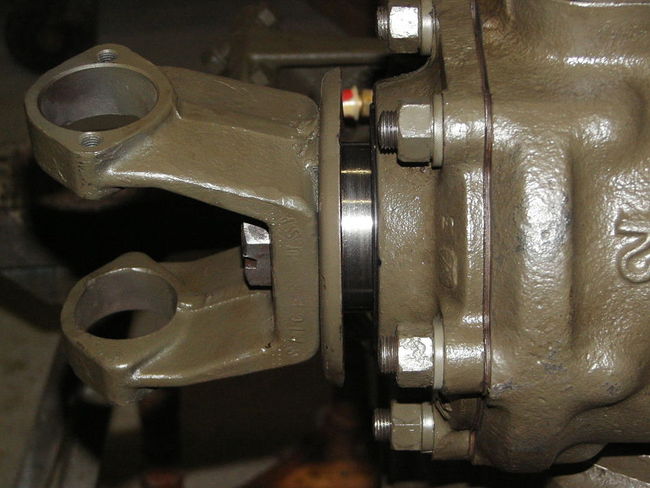

Universal yoke and seal housing
Incorrect arrangement of the seal housing on the yoke. Here, the yoke is correctly fitted and torqued up on its' shaft. But the housing is too short, however, the seal engages the seal surface by a good 5/8"
